1.3. Development Tools

The tools required for this book include the .NET SDK, VS Code, and the C# extension (a VS Code extension). In addition, we will also use the command line interface (CLI, the Command Prompt in Windows or shell in macOS/Linux, or just “the terminal”) for certain operations from time to time.

1.3.1. Software Development Kits (SDKs)

A software development kit (SDK) is a collection of software development tools in one installable package. They facilitate the creation of applications by having a compiler, debugger and sometimes a software framework. SDKs are normally specific to a hardware platform and operating system combination. [1] [2]

  • Runtime:

    As part of the .NET SDK, the .NET runtime is a virtual machine that converts the compiled intermediate code into machine code to be executed on the CPU. In addition, the .NET runtime provides an environment, that performs services such as exception handling and garbage collection.

1.3.2. Terminal & Shell

Having some knowledge of using the command line interface (CLI, often referred to as command prompt in Windows, “shell” in Linux/macOS, or command line/terminal in general) is necessary when learning how to code. Major operating systems all have CLIs for users to interact with the operating system by issuing text commands in the terminal rather than using the graphical user interface (GUI). Different operating systems are shipped with different default terminal applications (or “terminal emulators” as they emulate the locally-attached dumb terminals).

  • macOS: Terminal.app (Zsh, Bash)

  • Linux: the shell (usually Bash)

  • Windows: Terminal (PowerShell, Command Prompt, Bash)

When we open a terminal application, a default shell program is running as a command line interpreter program that takes commands from users for execution. The terminal applications can run different shells and they work similarly. For Windows, the default shell is PowerShell; for macOS it is the Z shell (Zsh); and for Linux OS distributions, it is usually the Bourne Again Shell (Bash).

When you open the CLI application, you use the keyboard (without a mouse) to issue text commands. In the terminal, you see a command prompt (user_name@computer_name:~$ for macOS/Linux or C:\Users\user_name> for Windows) followed by a cursor (maybe blinking), which is where you type to issue your commands.

For Windows users, you may issue wsl to switch from the default PowerShell to Windows Subsystem for Linux (wsl) to use Bash as your shell. Your command prompt will change to user_name@computer_name:/mnt/c/Users/user_name$. For the purpose of this book, you may use PowerShell and use the Bash commands with a slightly different interface.

Unix-like OSs (such as Unix, macOS, and Linux) system are file-based, meaning the design principle dictates that everything in the system is a file, and the files are organized as a tree-like file system structure. In the command line, a file path is then used to specify the location of a file in a the computer’s file system structure. The file system structure begins with the root (/), with a number of default first level directories representing the functionalities. For example, oen of the first the default location after logging in is the user’s home directory, which is specified as /home/USER_NAME.

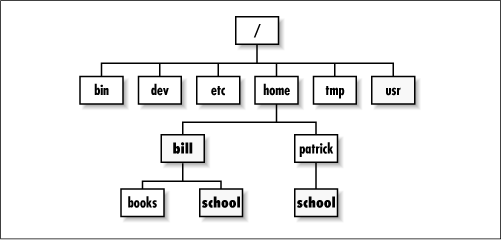

../_images/linux_directory_tree.gif

A hypothetical Linux directory tree

To start navigating around the file system structure, some of the essential commands include:

  • ls (list storage) to show the files and directories in the current directory

  • pwd (present working directory) to see the full path of the current directory

  • mkdir folder (make directory) to create a new directory called folder

  • cd *path* (change directory) to change in the path directory in the directory tree structure (path “..” means the upper level directory).

  • ^+C (hold the Control key and then hit the C key) to terminate a process.

  • touch *filename* (Mac) to create an empty file.

  • new-item *filename* (PowerShell) to create an empty file.

  • exit to exit out of the terminal app.

Some special pathname characters are commonly used for specifying paths:

  • / is the root of the system’s file directory tree structure

  • ~ is the user’s home directory

  • .. is the pathname of the directory one-level up of the current directory

  • . means the current directory; but when placed at the beginning of a file, it makes the file a hidden file.

1.3.2.1. Exercise: Creating Directories and Files

As an exercise, please: #. Terminal application: Open your terminal app (Windows PowerShell or macOS Terminal). #. Create directories:

  1. Create a directory called workspace in your home directory (mkdir workspace), then change directory into the workspace directory (cd workspace)

  2. Create a directory called tests in the workspace directory ((mkdir tests)), then change directory into the tests directory (cd tests).

  1. Create a file: Create an empty file called test.txt (new-item test.txt for Windows and touch test.txt for macOS).

  2. Make sure the files is created: Use the list storage command (ls then Enter) to list the files to make sure the file test.txt is created.

  3. Change directory to your user home directory: Change your location back to the user home directory (cd ../..).

  4. Exit out of terminal app: exit then Enter to exit.

The whole process should look similar to this in Windows:

PS C:\Users\tcn85> mkdir workspace             ### create the workspace directory in user home directory
PS C:\Users\tcn85> cd workspace                ### change directory into workspace
PS C:\Users\tcn85\workspace> mkdir tests       ### create the tests directory
PS C:\Users\tcn85\workspace> cd tests           ### change into the test directory
PS C:\Users\tcn85\workspace\tests> new-item test.txt   ### create an empty file; use "touch test.txt" if you use macOS.
PS C:\Users\tcn85\workspace\tests> ls          ### list storage to see the file
test.txt
PS C:\Users\tcn85\workspace\tests> cd ../..    ### change to the upper directory twice
PS C:\Users\tcn85>exit                         ### exit --> Enter to leave the terminal

If you use macOS, the process should look similar enough:

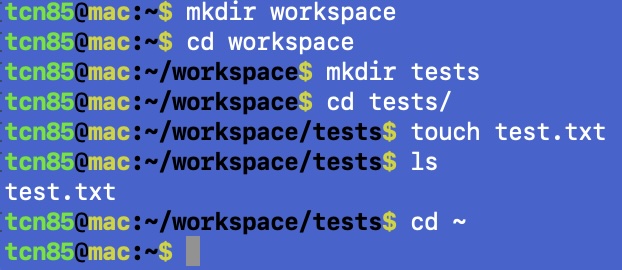

../_images/shell_create_workspace_tests.jpg

Creating a workspace directory, tests subdirectory, and a test file in macOS.

Note that: - To rename a file or a directory, use the mv (“move”) command. For example: mv ist_1551 introcscs will rename a folder called ist_1551 to introcscs. - To remove/delete a file, use rm *file_name*. - To remove an empty directory, use rmdir *directory_name*. - To remove a directory and all its content, use rm -rf *directory_name*.

1.3.3. Integrated Development Environment (IDE)

Integrated development environment (IDE) applications play a critical role in software development workflow and usually contains tools such as source-code editor, build automation tools, and a debugger. IDEs commonly used by professionals developers are: Visual Studio Code, Visual Studio, IntelliJ IDEA, Notepad++, and Vim.

Visual Studio Code (VS Code) is an editor with plenty of features. It has turned from a text editor into an integrated development editor (IDE) with a large number of extensions available to enhance and enrich its tools and features. A great advantage of learning VS Code is that it is extremely versatile. Once you learn how to use it, you can use it for almost every other programming languages and technology as long as they involve editing and coding.

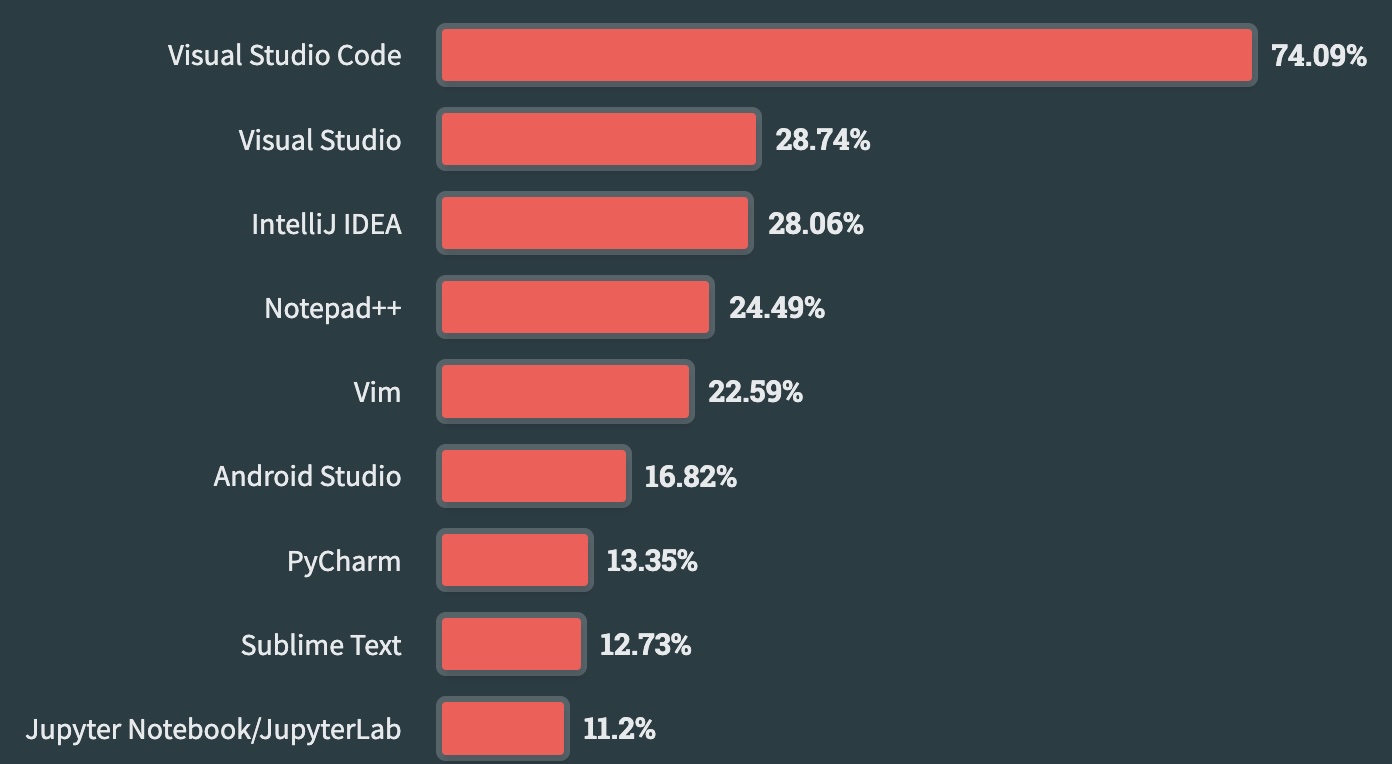

../_images/popular_ide.jpg

Visual Studio Code remains the preferred IDE across all developers. [3]

1.3.3.1. VS Code

The popular IDE/editor VS Code user interface include several panes:

  1. Activity Bar - Where you change Views. For example, the default view is Explorer for managing files.

  2. Primary Side Bar

  3. Editor

  4. Panel

  5. Status Bar

Activity Bar: In the Activity Bar on the left of the window, you can access different Views such as:

  1. Search - Provides global search and replace across your open folder.

  2. Source Control - VS Code includes Git source control by default.

  3. Run - VS Code’s Run and Debug View displays variables, call stacks, and breakpoints.

  4. Extensions - Install and manage your extensions within VS Code.

  5. Custom views - Views contributed by extensions.

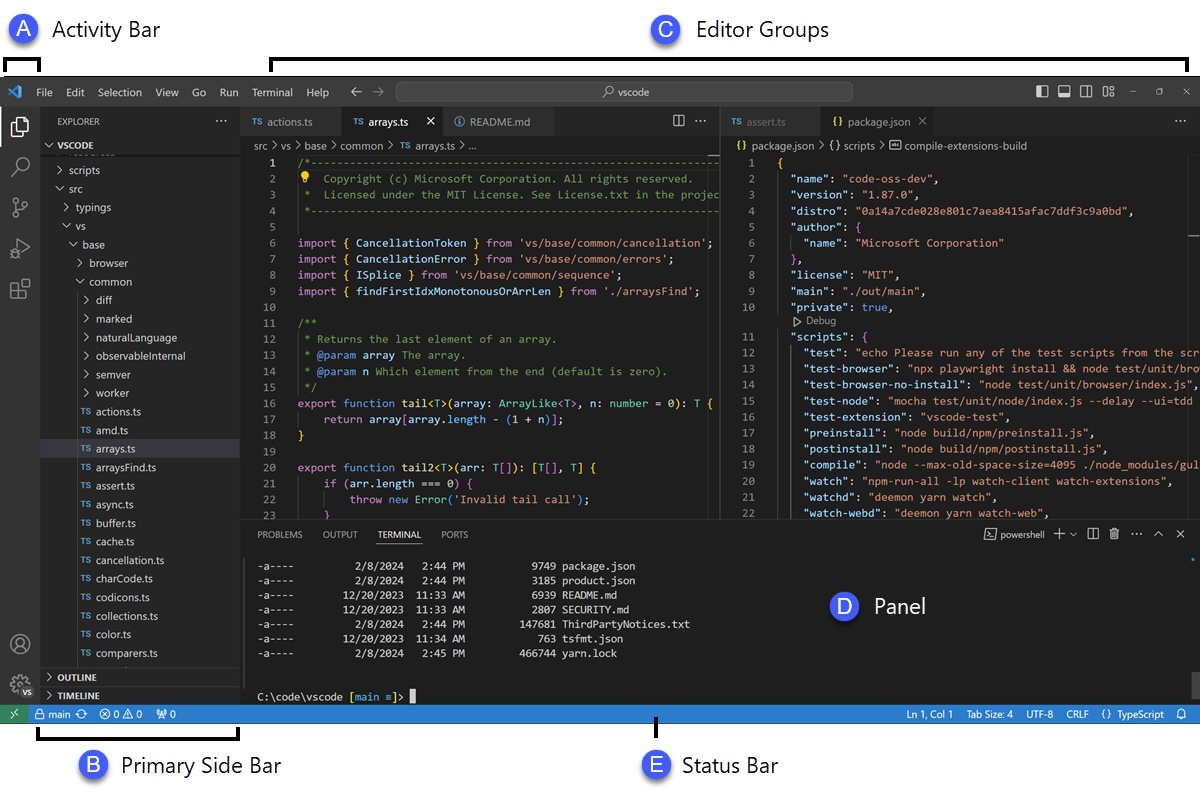

../_images/vscode_interface.jpg

Basic elements in VS Code user interface [4]

Terminal: In the Panel section (vscode-toggle), you have access to the TERMINAL and other console tabs. Note that:

  • The TERMINAL is exactly the same as your terminal application.

  • When you open a project by issuing code . in the project directory, the terminal will be default to the project directory.

  • You may use Cmd+J (Ctl+J) to toggle the Panel to use the terminal.

Command Palette: In addition to the UI elements, an important key combination to learn is Ctl + Shift + P on Windows and Linux, or Shift + Command + P on Mac. Command palette gives access to all the functionalities within VS Code. For example, if you type .NET at the command palette, you get to access the .NET commands and features as follows.

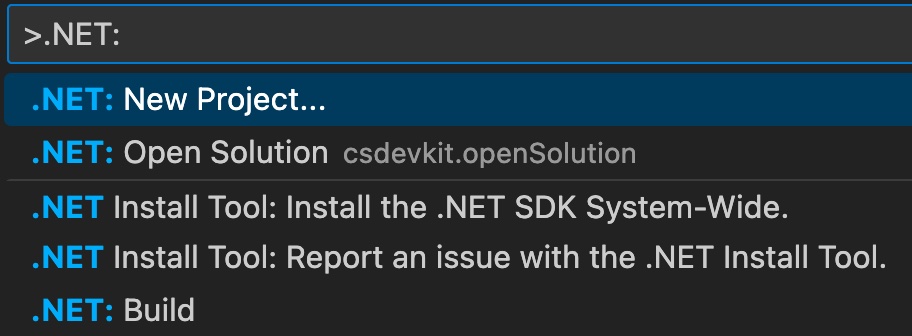

../_images/command_pallette_dontnet.jpg

Using vscode Command Palette

1.3.4. C# REPL (csharprepl)

While VS Code and .NET templates have made coding C# easy, a REPL (Read–Evaluate–Print-Loop, or language shell/interpreter) provides immediate execution and result return, which can be very useful as you get to see immediate feedback of your code. This means direct execution of C# code without creating projects and files.

  • Installation: CSharpRepl can be installed by issuing dotnet tool install -g csharprepl.

  • Usage: CSharpRepl is invoked by using the csharprepl command at terminal/command line.

CSharpRepl is good for:

  • Rapid experimentation and exploration of C# syntax and features. invoke it in the VS Code terminal. That way, code editing and quick syntax testing are in one place.

1.3.5. Other Development Tools

There are plenty of development tools that are worthy of our time to learn, except that we would not be able to learn all of them in one semester. A short list of those tools would include:

  • Version Control (such as GitHub)

  • Containerization (Docker)

  • Shell Scripting (Bash)
